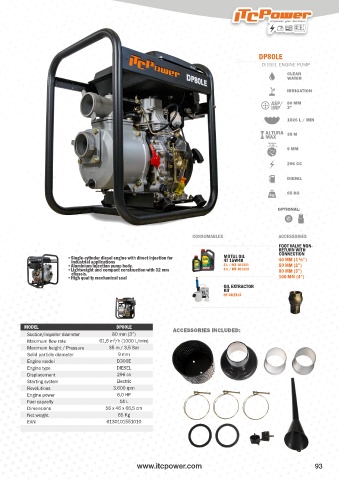

Page 93 - ITC 2024 EN
P. 93
DP80LE
DIESEL ENGINE PUMP
CLEAN
WATER
IRRIGATION
80 MM
3”
1026 L / MIN
35 M
9 MM
296 CC
DIESEL
65 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
RETURN WITH
•Single-cylinder diesel engine with direct injection for MOTUL OIL CONNECTION
40 MM (1 ½“)
industrial applications 4T 15W40
•Aluminium injection pump body. 2 L / MT-101311 50 MM (2”)
•Lightweight and compact construction with 32 mm 5 L / MT-101312 80 MM (3”)
chassis.
•High quality mechanical seal 100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
MODEL DP80LE ACCESSORIES INCLUDED:
Suction/impeller diameter 80 mm (3’’)
3
Maximum flow rate 61,6 m /h (1000 L/min)
Maximum height / Pressure 35 m / 3,5 Bar
Solid particle diameter 9 mm
Engine model D300E
Engine type DIESEL
Displacement 296 cc
Starting system Electric
Revolutions 3.600 rpm
Engine power 6,0 HP
Fuel capacity 14 L
Dimensions 56 x 46 x 66,5 cm
Net weight 65 Kg
EAN 6130101551010
www.itcpower.com 93
