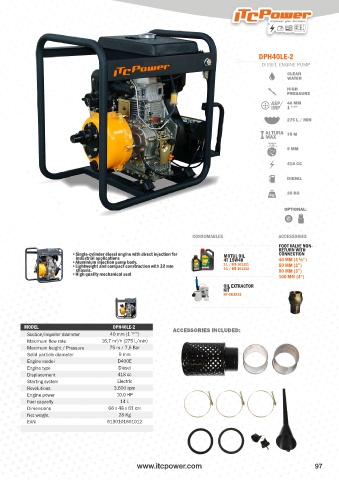

P. 97
DPH40LE-2
DIESEL ENGINE PUMP
CLEAN
WATER
HIGH
PRESSURE
40 MM
1 ”
1/2
275 L / MIN
75 M
9 MM
418 CC
DIESEL
28 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
RETURN WITH
•Single-cylinder diesel engine with direct injection for MOTUL OIL CONNECTION
industrial applications 4T 15W40 40 MM (1 ½“)
•Aluminium injection pump body.
•Lightweight and compact construction with 32 mm 2 L / MT-101311 50 MM (2”)
chassis. 5 L / MT-101312 80 MM (3”)
•High quality mechanical seal 100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
MODEL DPH40LE-2 ACCESSORIES INCLUDED:
1/2
Suction/impeller diameter 40 mm (1 ’’)
Maximum flow rate 16,7 m /h (275 L/min)
3
Maximum height / Pressure 75 m / 7,5 Bar
Solid particle diameter 9 mm
Engine model D400E
Engine type Diesel
Displacement 418 cc
Starting system Electric
Revolutions 3.600 rpm
Engine power 10,0 HP
Fuel capacity 14 L
Dimensions 66 x 48 x 61 cm
Net weight 28 Kg
EAN 6130101601012
www.itcpower.com 97
