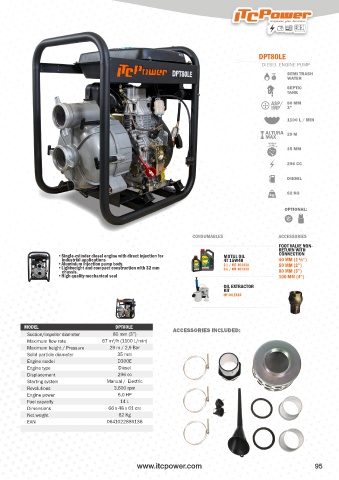

Page 95 - ITC 2024 EN
P. 95
DPT80LE
DIESEL ENGINE PUMP
SEMI TRASH
WATER
SEPTIC
TANK
80 MM
3”
1100 L / MIN
29 M
35 MM
296 CC
DIESEL
62 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
RETURN WITH
•Single-cylinder diesel engine with direct injection for MOTUL OIL CONNECTION
industrial applications 4T 15W40 40 MM (1 ½“)
•Aluminium injection pump body. 2 L / MT-101311 50 MM (2”)
•Lightweight and compact construction with 32 mm 5 L / MT-101312
chassis. 80 MM (3”)
•High quality mechanical seal 100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
MODEL DPT80LE ACCESSORIES INCLUDED:
Suction/impeller diameter 80 mm (3’’)
3
Maximum flow rate 67 m /h (1100 L/min)
Maximum height / Pressure 29 m / 2,9 Bar
Solid particle diameter 35 mm
Engine model D300E
Engine type Diesel
Displacement 296 cc
Starting system Manual / Electric
Revolutions 3.600 rpm
Engine power 6,0 HP
Fuel capacity 14 L
Dimensions 66 x 48 x 61 cm
Net weight 62 Kg
EAN 0641022889138
www.itcpower.com 95
