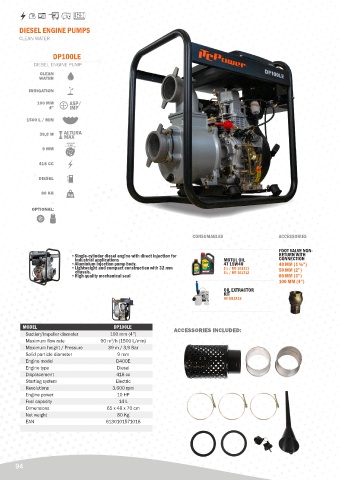

P. 94
DIESEL ENGINE PUMPS
CLEAN WATER
DP100LE
DIESEL ENGINE PUMP
CLEAN
WATER
IRRIGATION
100 MM
4”
1500 L / MIN
39,8 M
9 MM
418 CC
DIESEL
80 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
•Single-cylinder diesel engine with direct injection for RETURN WITH
industrial applications MOTUL OIL CONNECTION
•Aluminium injection pump body. 4T 15W40 40 MM (1 ½“)
•Lightweight and compact construction with 32 mm 2 L / MT-101311 50 MM (2”)
chassis. 5 L / MT-101312
•High quality mechanical seal 80 MM (3”)
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
MODEL DP100LE ACCESSORIES INCLUDED:
Suction/impeller diameter 100 mm (4’’)
Maximum flow rate 90 m /h (1500 L/min)
3
Maximum height / Pressure 39 m / 3,9 Bar
Solid particle diameter 9 mm
Engine model D400E
Engine type Diesel
Displacement 418 cc
Starting system Electric
Revolutions 3.600 rpm
Engine power 10 HP
Fuel capacity 14 L
Dimensions 65 x 48 x 70 cm
Net weight 80 Kg
EAN 6130101571018
94
