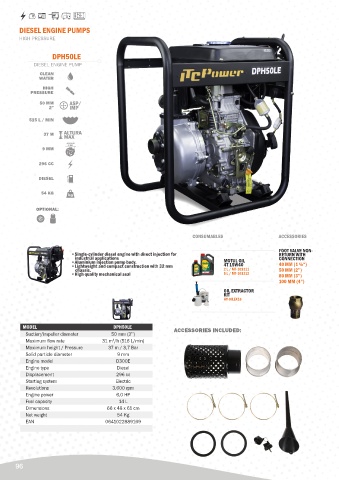

Page 96 - ITC 2024 EN
P. 96
DIESEL ENGINE PUMPS
HIGH PRESSURE
DPH50LE
DIESEL ENGINE PUMP
CLEAN
WATER
HIGH
PRESSURE
50 MM
2”
515 L / MIN
37 M
9 MM
296 CC
DIESEL
54 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
•Single-cylinder diesel engine with direct injection for RETURN WITH
industrial applications CONNECTION
•Aluminium injection pump body. MOTUL OIL 40 MM (1 ½“)
•Lightweight and compact construction with 32 mm 4T 15W40
chassis. 2 L / MT-101311 50 MM (2”)
•High quality mechanical seal 5 L / MT-101312 80 MM (3”)
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
MODEL DPH50LE ACCESSORIES INCLUDED:
Suction/impeller diameter 50 mm (2’’)
Maximum flow rate 31 m /h (516 L/min)
3
Maximum height / Pressure 37 m / 3,7 Bar
Solid particle diameter 9 mm
Engine model D300E
Engine type Diesel
Displacement 296 cc
Starting system Electric
Revolutions 3.600 rpm
Engine power 6,0 HP
Fuel capacity 14 L
Dimensions 66 x 48 x 61 cm
Net weight 54 Kg
EAN 0641022889169
