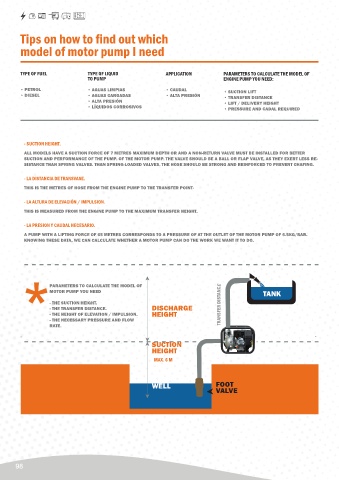

Tips on how to find out which

model of motor pump I need

TYPE OF FUEL TYPE OF LIQUID APPLICATION PARAMETERS TO CALCULATE THE MODEL OF
TO PUMP ENGINE PUMP YOU NEED:

• PETROL • AGUAS LIMPIAS • CAUDAL • SUCTION LIFT
• DIESEL • AGUAS CARGADAS • ALTA PRESIÓN • TRANSFER DISTANCE
• ALTA PRESIÓN • LIFT / DELIVERY HEIGHT
• LÍQUIDOS CORROSIVOS • PRESSURE AND CADAL REQUIRED

- SUCTION HEIGHT.
ALL MODELS HAVE A SUCTION FORCE OF 7 METRES MAXIMUM DEPTH OR AND A NON-RETURN VALVE MUST BE INSTALLED FOR BETTER
SUCTION AND PERFORMANCE OF THE PUMP. OF THE MOTOR PUMP. THE VALVE SHOULD BE A BALL OR FLAP VALVE, AS THEY EXERT LESS RE-
SISTANCE THAN SPRING VALVES. THAN SPRING-LOADED VALVES. THE HOSE SHOULD BE STRONG AND REINFORCED TO PREVENT CHAFING.

- LA DISTANCIA DE TRANSVASE.
THIS IS THE METRES OF HOSE FROM THE ENGINE PUMP TO THE TRANSFER POINT-

- LA ALTURA DE ELEVACIÓN / IMPULSION.
THIS IS MEASURED FROM THE ENGINE PUMP TO THE MAXIMUM TRANSFER HEIGHT.

- LA PRESION Y CAUDAL NECESARIO.
A PUMP WITH A LIFTING FORCE OF 65 METRES CORRESPONDS TO A PRESSURE OF AT THE OUTLET OF THE MOTOR PUMP OF 6.5KG/BAR.
KNOWING THESE DATA, WE CAN CALCULATE WHETHER A MOTOR PUMP CAN DO THE WORK WE WANT IT TO DO.

PARAMETERS TO CALCULATE THE MODEL OF
MOTOR PUMP YOU NEED TANK

- THE SUCTION HEIGHT. TRANSFER DISTANCE
- THE TRANSFER DISTANCE. DISCHARGE
- THE HEIGHT OF ELEVATION / IMPULSION. HEIGHT
- THE NECESSARY PRESSURE AND FLOW
RATE.

SUCTION
HEIGHT
MAX. 6 M

WELL FOOT
VALVE
