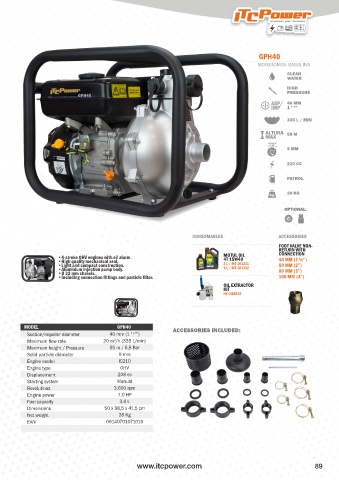

Page 89 - ITC 2024 EN

GPH40

MOTOBOMBA GASOLINA
CLEAN
WATER
HIGH
PRESSURE
40 MM
1 ”
1/2
335 L / MIN

55 M

9 MM

210 CC

PETROL

28 KG

OPTIONAL:

CONSUMABLES ACCESSORIES
FOOT VALVE NON-
RETURN WITH
•4-stroke OHV engines with oil alarm. MOTUL OIL CONNECTION
4T 15W40
•High quality mechanical seal. 40 MM (1 ½“)
•Light and compact construction. 2 L / MT-101311 50 MM (2”)
•Aluminium injection pump body. 5 L / MT-101312 80 MM (3”)
•Ø 32 mm chassis.
•Including connection fittings and particle filter. 100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16

MODEL GPH40 ACCESSORIES INCLUDED:
Suction/impeller diameter 40 mm (1 1 /2 ’’)
3
Maximum flow rate 20 m /h (335 L/min)
Maximum height / Pressure 55 m / 5,5 Bar
Solid particle diameter 9 mm
Engine model IC210
Engine type OHV
Displacement 208 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 7,0 HP
Fuel capacity 3,6 L
Dimensions 50 x 38,5 x 41,5 cm
Net weight 28 Kg
EAN 06140701071016

www.itcpower.com 89
