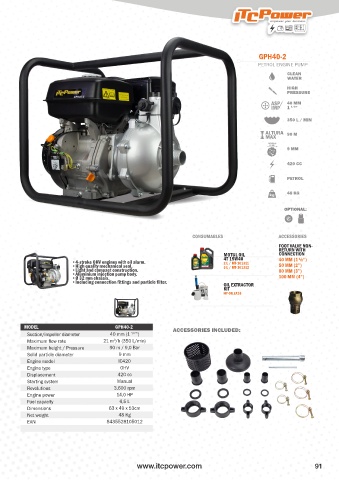

Page 91 - ITC 2024 EN

GPH40-2

PETROL ENGINE PUMP
CLEAN
WATER
HIGH
PRESSURE
40 MM
1 ”
1/2
350 L / MIN

90 M

9 MM

420 CC

PETROL

48 KG

OPTIONAL:

CONSUMABLES ACCESSORIES
FOOT VALVE NON-
RETURN WITH
MOTUL OIL CONNECTION
•4-stroke OHV engines with oil alarm. 4T 15W40 40 MM (1 ½“)
2 L / MT-101311
•High quality mechanical seal. 5 L / MT-101312 50 MM (2”)
•Light and compact construction. 80 MM (3”)
•Aluminium injection pump body.
•Ø 32 mm chassis. 100 MM (4”)
•Including connection fittings and particle filter. OIL EXTRACTOR
KIT
HY-OILEX16

MODEL GPH40-2 ACCESSORIES INCLUDED:
Suction/impeller diameter 40 mm (1 ’’)
1/2
Maximum flow rate 21 m /h (350 L/min)
3
Maximum height / Pressure 90 m / 9,0 Bar
Solid particle diameter 9 mm
Engine model IC420
Engine type OHV
Displacement 420 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 14,0 HP
Fuel capacity 6,5 L
Dimensions 63 x 49 x 53cm
Net weight 48 Kg
EAN 8435528105012

www.itcpower.com 91
