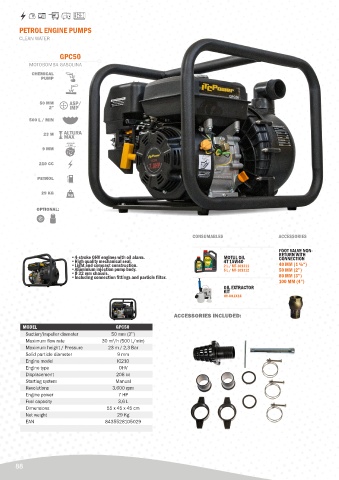

Page 88 - ITC 2024 EN
P. 88
PETROL ENGINE PUMPS
CLEAN WATER
GPC50
MOTOBOMBA GASOLINA
CHEMICAL
PUMP
50 MM
2”
500 L / MIN
23 M
9 MM
210 CC
PETROL
29 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
•4-stroke OHV engines with oil alarm. MOTUL OIL RETURN WITH
CONNECTION
•High quality mechanical seal. 4T 15W40
•Light and compact construction. 2 L / MT-101311 40 MM (1 ½“)
•Aluminium injection pump body. 5 L / MT-101312 50 MM (2”)
•Ø 32 mm chassis.
•Including connection fittings and particle filter. 80 MM (3”)
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
ACCESSORIES INCLUDED:
MODEL GPC50
Suction/impeller diameter 50 mm (2’’)
Maximum flow rate 30 m /h (500 L/min)
3
Maximum height / Pressure 23 m / 2,3 Bar
Solid particle diameter 9 mm
Engine model IC210
Engine type OHV
Displacement 208 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 7 HP
Fuel capacity 3,6 L
Dimensions 55 x 45 x 45 cm
Net weight 29 Kg
EAN 8435528105029
88
