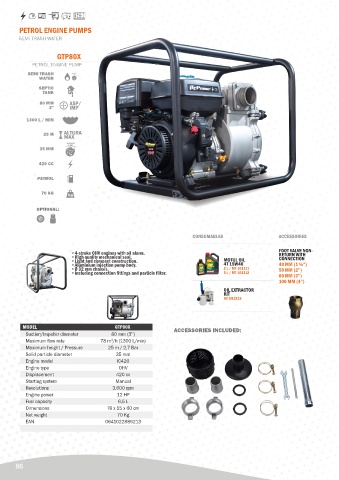

Page 86 - ITC 2024 EN
P. 86
PETROL ENGINE PUMPS
SEMI TRASH WATER
GTP80X
PETROL ENGINE PUMP
SEMI TRASH
WATER
SEPTIC
TANK
80 MM
3”
1300 L / MIN
25 M
35 MM
420 CC
PETROL
70 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
•4-stroke OHV engines with oil alarm. RETURN WITH
•High quality mechanical seal. CONNECTION
•Light and compact construction. MOTUL OIL
•Aluminium injection pump body. 4T 15W40 40 MM (1 ½“)
•Ø 32 mm chassis. 2 L / MT-101311 50 MM (2”)
•Including connection fittings and particle filter. 5 L / MT-101312 80 MM (3”)
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
MODEL GTP80X ACCESSORIES INCLUDED:
Suction/impeller diameter 80 mm (3’’)
Maximum flow rate 78 m /h (1300 L/min)
3
Maximum height / Pressure 25 m / 2,7 Bar
Solid particle diameter 35 mm
Engine model IC420
Engine type OHV
Displacement 420 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 12 HP
Fuel capacity 6,5 L
Dimensions 76 x 55 x 60 cm
Net weight 70 Kg
EAN 0641022889213
86
