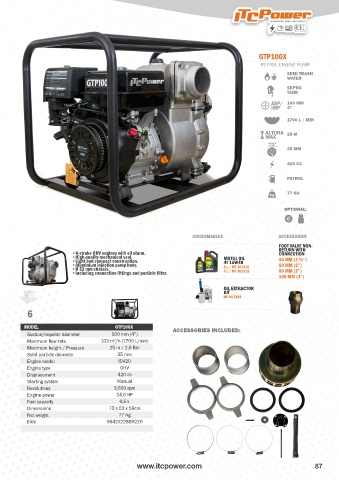

Page 87 - ITC 2024 EN
P. 87
GTP100X
PETROL ENGINE PUMP
SEMI TRASH
WATER
SEPTIC
TANK
100 MM
4”
1700 L / MIN
25 M
35 MM
420 CC
PETROL
77 KG
OPTIONAL:
CONSUMABLES ACCESSORIES
FOOT VALVE NON-
•4-stroke OHV engines with oil alarm. RETURN WITH
CONNECTION
•High quality mechanical seal. MOTUL OIL
•Light and compact construction. 4T 15W40 40 MM (1 ½“)
•Aluminium injection pump body. 50 MM (2”)
•Ø 32 mm chassis. 2 L / MT-101311 80 MM (3”)
•Including connection fittings and particle filter. 5 L / MT-101312
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16
6
MODEL GTP100X ACCESSORIES INCLUDED:
Suction/impeller diameter 100 mm (4’’)
3
Maximum flow rate 102 m /h (1700 L/min)
Maximum height / Pressure 25 m / 2,5 Bar
Solid particle diameter 35 mm
Engine model IC420
Engine type OHV
Displacement 420 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 14,0 HP
Fuel capacity 6,5 L
Dimensions 73 x 53 x 58cm
Net weight 77 Kg
EAN 0641022889220
www.itcpower.com 87
