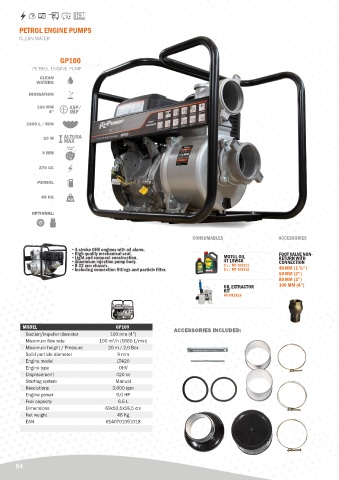

Page 84 - ITC 2024 EN

PETROL ENGINE PUMPS
CLEAN WATER

GP100
PETROL ENGINE PUMP
CLEAN
WATERS

IRRIGATION

100 MM
4”
1660 L / MIN

20 M

9 MM

270 CC

PETROL

48 KG

OPTIONAL:

CONSUMABLES ACCESSORIES

•4-stroke OHV engines with oil alarm.
•High quality mechanical seal. FOOT VALVE NON-
•Light and compact construction. MOTUL OIL RETURN WITH
•Aluminium injection pump body. 4T 15W40 CONNECTION
•Ø 32 mm chassis. 2 L / MT-101311
•Including connection fittings and particle filter. 5 L / MT-101312 40 MM (1 ½“)
50 MM (2”)
80 MM (3”)
OIL EXTRACTOR 100 MM (4”)
KIT
HY-OILEX16

MODEL GP100 ACCESSORIES INCLUDED:
Suction/impeller diameter 100 mm (4’’)
Maximum flow rate 100 m /h (1660 L/min)
3
Maximum height / Pressure 20 m / 2,0 Bar
Solid particle diameter 9 mm
Engine model LT420
Engine type OHV
Displacement 420 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 9,0 HP
Fuel capacity 6.5 L
Dimensions 69x50,5x58,5 cm
Net weight 48 Kg
EAN 6140701051018
