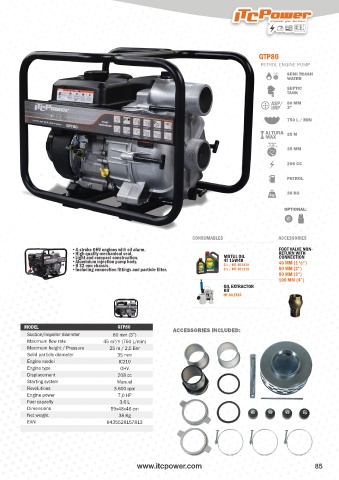

Page 85 - ITC 2024 EN

GTP80

PETROL ENGINE PUMP
SEMI TRASH
WATER
SEPTIC
TANK
80 MM
3”

750 L / MIN

25 M

35 MM

208 CC

PETROL

38 KG

OPTIONAL:

CONSUMABLES ACCESSORIES

•4-stroke OHV engines with oil alarm. FOOT VALVE NON-
•High quality mechanical seal. RETURN WITH
•Light and compact construction. MOTUL OIL CONNECTION
•Aluminium injection pump body. 4T 15W40 40 MM (1 ½“)
•Ø 32 mm chassis. 2 L / MT-101311
•Including connection fittings and particle filter. 5 L / MT-101312 50 MM (2”)
80 MM (3”)
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16

MODEL GTP80 ACCESSORIES INCLUDED:
Suction/impeller diameter 80 mm (3’’)
Maximum flow rate 45 m /h (750 L/min)
3
Maximum height / Pressure 25 m / 2,5 Bar
Solid particle diameter 35 mm
Engine model IC210
Engine type OHV
Displacement 208 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 7,0 HP
Fuel capacity 3,6 L
Dimensions 59x48x46 cm
Net weight 38 Kg
EAN 8435528157813

www.itcpower.com 85
