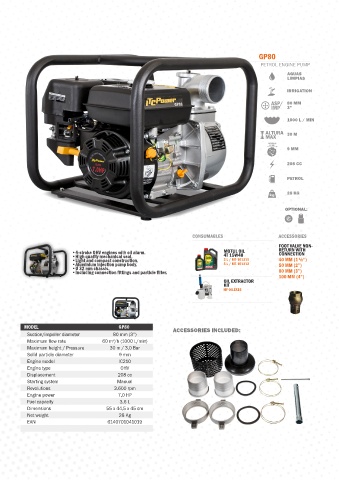

Page 83 - ITC 2024 EN

GP80

PETROL ENGINE PUMP
AGUAS
LIMPIAS
IRRIGATION

80 MM
3”

1000 L / MIN

30 M

9 MM

208 CC

PETROL

28 KG

OPTIONAL:

CONSUMABLES ACCESSORIES
FOOT VALVE NON-
•4-stroke OHV engines with oil alarm. MOTUL OIL RETURN WITH
CONNECTION
•High quality mechanical seal. 4T 15W40
•Light and compact construction. 2 L / MT-101311 40 MM (1 ½“)
•Aluminium injection pump body. 5 L / MT-101312 50 MM (2”)
•Ø 32 mm chassis.
•Including connection fittings and particle filter. 80 MM (3”)
100 MM (4”)
OIL EXTRACTOR
KIT
HY-OILEX16

MODEL GP80 ACCESSORIES INCLUDED:
Suction/impeller diameter 80 mm (3’’)
Maximum flow rate 60 m /h (1000 L/min)
3
Maximum height / Pressure 30 m / 3,0 Bar
Solid particle diameter 9 mm
Engine model IC210
Engine type OHV
Displacement 208 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 7,0 HP
Fuel capacity 3,6 L
Dimensions 55 x 44,5 x 45 cm
Net weight 28 Kg
EAN 6140701041019
