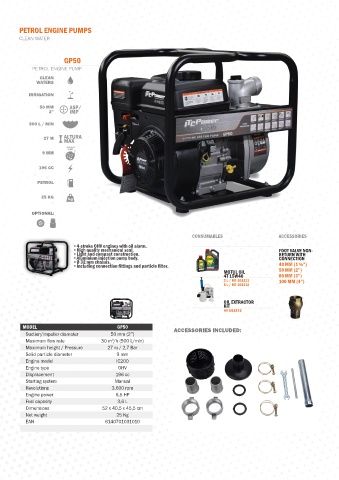

Page 82 - ITC 2024 EN

PETROL ENGINE PUMPS
CLEAN WATER

GP50
PETROL ENGINE PUMP
CLEAN
WATERS

IRRIGATION

50 MM
2”
500 L / MIN

27 M

9 MM

196 CC

PETROL

25 KG

OPTIONAL:

CONSUMABLES ACCESSORIES
•4-stroke OHV engines with oil alarm.
•High quality mechanical seal. FOOT VALVE NON-
•Light and compact construction. RETURN WITH
•Aluminium injection pump body. CONNECTION
•Ø 32 mm chassis.
•Including connection fittings and particle filter. 40 MM (1 ½“)
MOTUL OIL 50 MM (2”)
4T 15W40 80 MM (3”)
2 L / MT-101311 100 MM (4”)
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

MODEL GP50 ACCESSORIES INCLUDED:
Suction/impeller diameter 50 mm (2’’)
Maximum flow rate 30 m /h (500 L/min)
3
Maximum height / Pressure 27 m / 2,7 Bar
Solid particle diameter 9 mm
Engine model IC200
Engine type OHV
Displacement 196 cc
Starting system Manual
Revolutions 3.600 rpm
Engine power 6,5 HP
Fuel capacity 3,6 L
Dimensions 52 x 40,5 x 45,5 cm
Net weight 25 Kg
EAN 6140701031010
