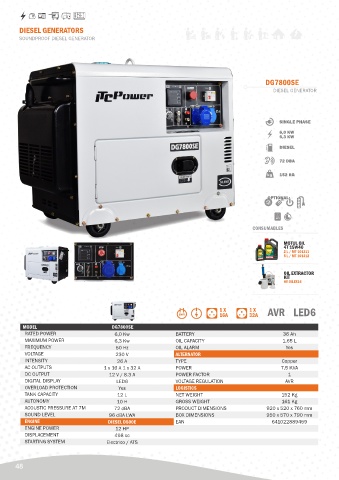

DIESEL GENERATORS
SOUNDPROOF DIESEL GENERATOR
DG7800SE
DIESEL GENERATOR
SINGLE PHASE
6,0 KW
6,3 KW
DIESEL
72 DBA
152 KG
OPTIONAL:
CONSUMABLES
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
KIT
HY-OILEX16
1 X 1 X AVR LED6
16A 32A
MODEL DG7800SE
RATED POWER 6,0 Kw BATTERY 36 Ah
MAXIMUM POWER 6,3 Kw OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR
INTENSITY 26 A TYPE Copper
AC OUTPUTS 1 x 16 A 1 x 32 A POWER 7,5 KVA
DC OUTPUT 12 V / 8.3 A POWER FACTOR 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 12 L NET WEIGHT 152 Kg
AUTONOMY 10 H GROSS WEIGHT 161 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 920 x 520 x 760 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 950 x 570 x 790 mm
ENGINE DIESEL D500E EAN 641022889459
ENGINE POWER 12 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Electrico / ATS
