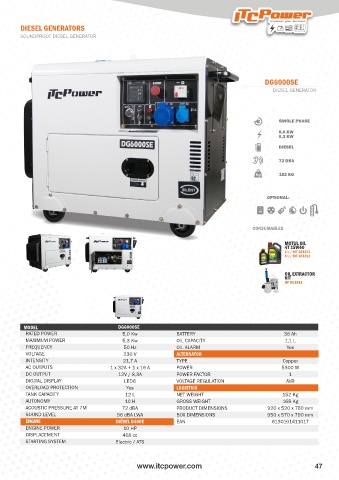

Page 47 - ITC 2024 EN
P. 47

DIESEL GENERATORS
        SOUNDPROOF DIESEL GENERATOR








                                                                                              DG6000SE
                                                                                                 DIESEL GENERATOR





                                                                                                   SINGLE PHASE
                                                                                                   5,0 KW
                                                                                                   5,3 KW

                                                                                                   DIESEL

                                                                                                   72 DBA

                                                                                                   152 KG



                                                                                               OPTIONAL:




                                                                                          CONSUMABLES


                                                                                                     MOTUL OIL
                                                                                                     4T 15W40
                                                                                                     2 L / MT-101311
                                                                                                     5 L / MT-101312

                                                                                                     OIL EXTRACTOR
                                                                                                     KIT
                                                                                                     HY-OILEX16








         MODEL                             DG6000SE
          RATED POWER                       5,0 Kw             BATTERY                               36 Ah
          MAXIMUM POWER                     5,3 Kw             OIL CAPACITY                          1,1 L
          FREQUENCY                         50 Hz              OIL ALARM                              Yes
          VOLTAGE                                                                                                                                                230 V  ALTERNATOR
          INTENSITY                         21,7 A             TYPE                                 Copper
          AC OUTPUTS                    1 x 32A + 1 x 16 A     POWER                                5300 W
          DC OUTPUT                        12V / 8,3A          POWER FACTOR                           1
          DIGITAL DISPLAY                    LED6              VOLTAGE REGULATION                     AVR
          OVERLOAD PROTECTION                Yes               LOGISTICS
          TANK CAPACITY                      12 L              NET WEIGHT                           152 Kg
          AUTONOMY                           10 H              GROSS WEIGHT                         168 Kg
          ACOUSTIC PRESSURE AT 7M           72 dBA             PRODUCT DIMENSIONS              920 x 520 x 760 mm
          SOUND LEVEL                     96 dBA LWA           BOX DIMENSIONS                  950 x 570 x 790 mm
          ENGINE                          DIÉSEL D400E         EAN                               6130101411017
          ENGINE POWER                      10 HP
          DISPLACEMENT                      418 cc
          STARTING SYSTEM                 Electric / ATS
