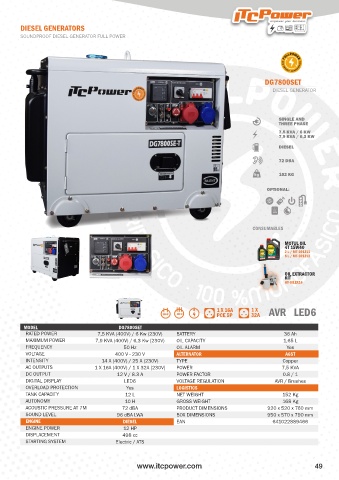

Page 49 - ITC 2024 EN

DIESEL GENERATORS
SOUNDPROOF DIESEL GENERATOR FULL POWER

DG7800SET
DIESEL GENERATOR

SINGLE AND
THREE PHASE
7,5 KVA / 6 KW
7,9 KVA / 6,3 KW

DIESEL

72 DBA

152 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 16A 1 X AVR LED6
PCE 5P 32A

MODEL DG7800SET
RATED POWER 7,5 KVA (400V) / 6 Kw (230V) BATTERY 36 Ah
MAXIMUM POWER 7,9 KVA (400V) / 6,3 Kw (230V) OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V - 230 V ALTERNATOR A6ST
INTENSITY 14 A (400V) / 25 A (230V) TYPE Copper
AC OUTPUTS 1 X 16A (400V) / 1 X 32A (230V) POWER 7,5 KVA
DC OUTPUT 12 V / 8.3 A POWER FACTOR 0.8 / 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR / Brushes
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 12 L NET WEIGHT 152 Kg
AUTONOMY 10 H GROSS WEIGHT 168 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 920 x 520 x 760 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 950 x 570 x 790 mm
ENGINE DIESEL EAN 641022889466
ENGINE POWER 12 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Electric / ATS
