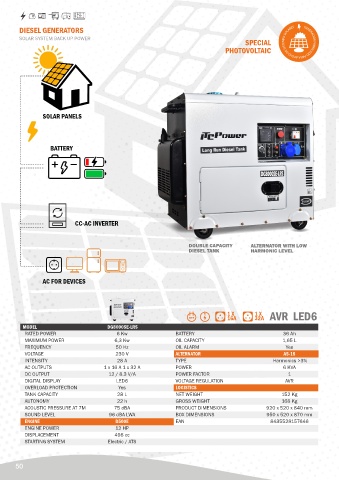

Page 50 - ITC 2024 EN
P. 50
DIESEL GENERATORS
SOLAR SYSTEM BACK UP POWER
SPECIAL
PHOTOVOLTAIC
SOLAR PANELS
BATTERY
CC-AC INVERTER
DOUBLE CAPACITY ALTERNATOR WITH LOW
DIESEL TANK HARMONIC LEVEL
AC FOR DEVICES
1 X 1 X AVR LED6
16A 32A
MODEL DG8000SE-LRS
RATED POWER 6 Kw BATTERY 36 Ah
MAXIMUM POWER 6,3 Kw OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR A5-15
INTENSITY 28 A TYPE Harmonics >3%
AC OUTPUTS 1 x 16 A 1 x 32 A POWER 6 KVA
DC OUTPUT 12 / 8.3 V/A POWER FACTOR 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 28 L NET WEIGHT 152 Kg
AUTONOMY 22 h GROSS WEIGHT 168 Kg
ACOUSTIC PRESSURE AT 7M 75 dBA PRODUCT DIMENSIONS 920 x 520 x 840 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 950 x 520 x 870 mm
ENGINE D500E EAN 8435528157646
ENGINE POWER 12 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Electric / ATS
50
