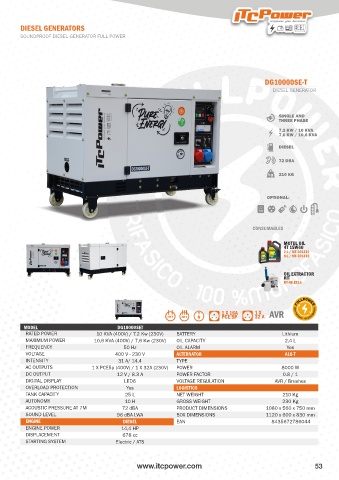

Page 53 - ITC 2024 EN
P. 53
DIESEL GENERATORS
SOUNDPROOF DIESEL GENERATOR FULL POWER
DG10000SE-T
DIESEL GENERATOR
SINGLE AND
THREE PHASE
7,2 KW / 10 KVA
7,6 KW / 10,6 KVA
DIESEL
72 DBA
210 KG
OPTIONAL:
CONSUMABLES
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
KIT
HY-OILEX16
1 X 16A 1 X AVR
PCE 5P 32 A
MODEL DG10000SET
RATED POWER 10 KVA (400V) / 7.2 Kw (230V) BATTERY Lithium
MAXIMUM POWER 10,6 KVA (400V) / 7,6 Kw (230V) OIL CAPACITY 2,4 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V - 230 V ALTERNATOR AL8-T
INTENSITY 31 A/ 14.4 TYPE
AC OUTPUTS 1 X PCE5p (400V) / 1 X 32A (230V) POWER 8000 W
DC OUTPUT 12 V / 8.3 A POWER FACTOR 0.8 / 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR / Brushes
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 25 L NET WEIGHT 210 Kg
AUTONOMY 10 H GROSS WEIGHT 230 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 1080 x 560 x 750 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 1120 x 600 x 830 mm
ENGINE DIESEL EAN 8435672786044
ENGINE POWER 14,4 HP
DISPLACEMENT 678 cc
STARTING SYSTEM Electric / ATS
www.itcpower.com 53
