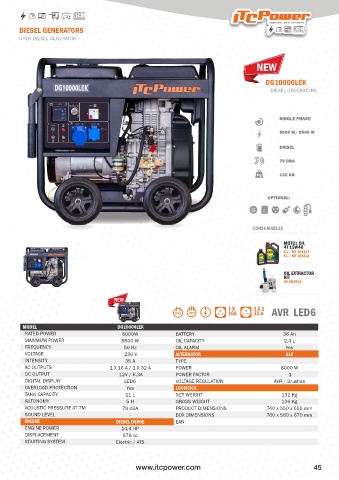

DIESEL GENERATORS
OPEN DIESEL GENERATOR
NEW
DG10000LEK
DIESEL GENERATORS
SINGLE PHASE
8000 W/ 8500 W
DIESEL
79 DBA
132 KG
OPTIONAL:
CONSUMABLES
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
KIT
HY-OILEX16
NEW
1 X 1 X 1 AVR LED6
16A 32 A
MODEL DG10000LEK
RATED POWER 8000W BATTERY 36 Ah
MAXIMUM POWER 8500 W OIL CAPACITY 2,4 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR AL8
INTENSITY 35 A TYPE -
AC OUTPUTS 1 X 16 A / 1 X 32 A POWER 8000 W
DC OUTPUT 12V / 8,3A POWER FACTOR 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR / Brushes
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 11 L NET WEIGHT 132 Kg
AUTONOMY 5 H GROSS WEIGHT 136 Kg
ACOUSTIC PRESSURE AT 7M 79 dBA PRODUCT DIMENSIONS 740 x 550 x 655 mm
SOUND LEVEL - BOX DIMENSIONS 760 x 560 x 670 mm
ENGINE DIESEL D680E EAN
ENGINE POWER 14,4 HP
DISPLACEMENT 678 cc
STARTING SYSTEM Electric / ATS
