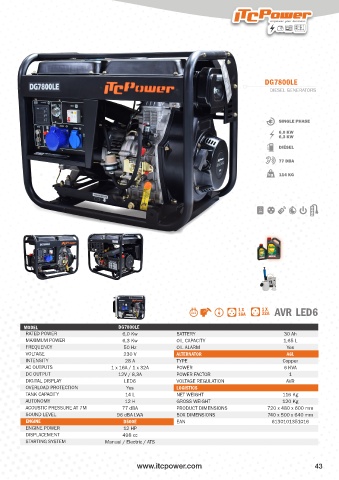

Page 43 - ITC 2024 EN
P. 43
DG7800LE
DIESEL GENERATORS
SINGLE PHASE
6,0 KW
6,3 KW
DIÉSEL
77 DBA
114 KG
1 X 1 X AVR LED6
16A 32A
MODEL DG7800LE
RATED POWER 6,0 Kw BATTERY 30 Ah
MAXIMUM POWER 6,3 Kw OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR A6L
INTENSITY 28 A TYPE Copper
AC OUTPUTS 1 x 16A / 1 x 32A POWER 6 KVA
DC OUTPUT 12V / 8,3A POWER FACTOR 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 14 L NET WEIGHT 116 Kg
AUTONOMY 12 H GROSS WEIGHT 120 Kg
ACOUSTIC PRESSURE AT 7M 77 dBA PRODUCT DIMENSIONS 720 x 480 x 600 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 740 x 500 x 640 mm
ENGINE D500E EAN 6130101351016
ENGINE POWER 12 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Manual / Electric / ATS
www.itcpower.com 43
