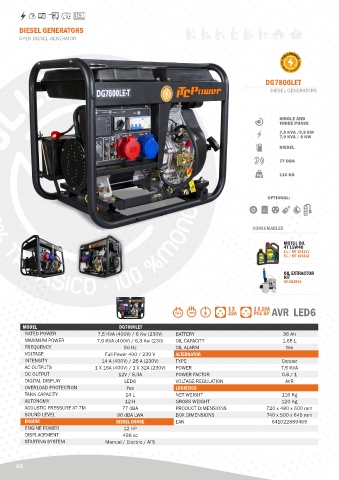

Page 44 - ITC 2024 EN

DIESEL GENERATORS
OPEN DIESEL GENERATOR

DG7800LET
DIESEL GENERATORS

SINGLE AND
THREE PHASE
7,5 KVA /5,5 KW
7,9 KVA / 6 KW

DIESEL

77 DBA

116 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 1 X 16A AVR LED6
32A PCE 5P

MODEL DG7800LET
RATED POWER 7,5 KVA (400V) / 6 Kw (230V) BATTERY 36 Ah
MAXIMUM POWER 7,9 KVA (400V) / 6,3 Kw (230) OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE ALTERNATOR
Full Power 400 / 230 V
INTENSITY 14 A (400V) / 26 A (230V) TYPE Copper
AC OUTPUTS 1 X 16A (400V) / 1 X 32A (230V) POWER 7,5 KVA
DC OUTPUT 12V / 8,3A POWER FACTOR 0.8 / 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 14 L NET WEIGHT 116 Kg
AUTONOMY 12 H GROSS WEIGHT 120 Kg
ACOUSTIC PRESSURE AT 7M 77 dBA PRODUCT DIMENSIONS 720 x 480 x 600 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 740 x 500 x 645 mm
ENGINE DIESEL D500E EAN 641022889459
ENGINE POWER 12 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Manual / Electric / ATS

44
