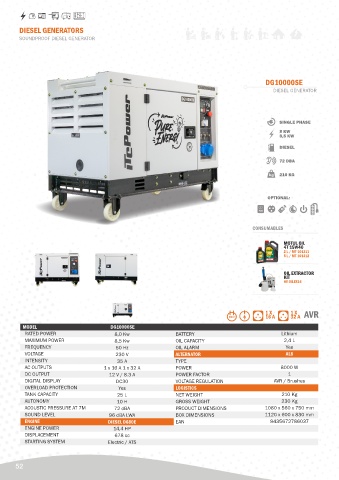

Page 52 - ITC 2024 EN
P. 52
DIESEL GENERATORS
SOUNDPROOF DIESEL GENERATOR
DG10000SE
DIESEL GENERATOR
SINGLE PHASE
8 KW
8,5 KW
DIESEL
72 DBA
210 KG
OPTIONAL:
CONSUMABLES
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
KIT
HY-OILEX16
1 X 1 X AVR
16 A 32 A
MODEL DG10000SE
RATED POWER 8,0 Kw BATTERY Lithium
MAXIMUM POWER 8,5 Kw OIL CAPACITY 2,4 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR AL8
INTENSITY 35 A TYPE
AC OUTPUTS 1 x 16 A 1 x 32 A POWER 8000 W
DC OUTPUT 12 V / 8.3 A POWER FACTOR 1
DIGITAL DISPLAY DC30 VOLTAGE REGULATION AVR / Brushes
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 25 L NET WEIGHT 210 Kg
AUTONOMY 10 H GROSS WEIGHT 230 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 1080 x 560 x 750 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 1120 x 600 x 830 mm
ENGINE DIESEL D680E EAN 8435672786037
ENGINE POWER 14,4 HP
DISPLACEMENT 678 cc
STARTING SYSTEM Electric / ATS
52
