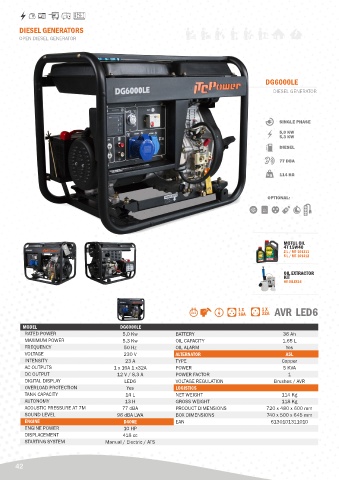

Page 42 - ITC 2024 EN
P. 42
DIESEL GENERATORS
OPEN DIESEL GENERATOR
DG6000LE
DIESEL GENERATOR
SINGLE PHASE
5,0 KW
5,3 KW
DIESEL
77 DBA
114 KG
OPTIONAL:
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
KIT
HY-OILEX16
1 X 1 X AVR LED6
16A 32A
MODEL DG6000LE
RATED POWER 5,0 Kw BATTERY 36 Ah
MAXIMUM POWER 5,3 Kw OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR A5L
INTENSITY 23 A TYPE Copper
AC OUTPUTS 1 x 16A 1 x32A POWER 5 KVA
DC OUTPUT 12 V / 8,3 A POWER FACTOR 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION Brushes / AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 14 L NET WEIGHT 114 Kg
AUTONOMY 13 H GROSS WEIGHT 118 Kg
ACOUSTIC PRESSURE AT 7M 77 dBA PRODUCT DIMENSIONS 720 x 480 x 600 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 740 x 500 x 645 mm
ENGINE D400E EAN 6130101311010
ENGINE POWER 10 HP
DISPLACEMENT 418 cc
STARTING SYSTEM Manual / Electric / ATS
