Page 55 - ITC 2024 EN
P. 55
1 X 32A 1 X AVR DC30D
PCE 5P 63A

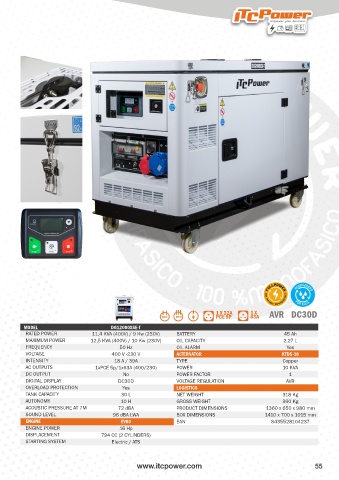

MODEL DG12000XSE-T
RATED POWER 11,4 KVA (400V) / 9 Kw (230V) BATTERY 45 Ah
MAXIMUM POWER 12,5 KVA (400V) / 10 Kw (230V) OIL CAPACITY 2,27 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V -230 V ALTERNATOR KTDS-10
INTENSITY 18 A / 39A TYPE Copper
AC OUTPUTS 1xPCE 5p/1x63A (400/230) POWER 10 KVA
DC OUTPUT No POWER FACTOR 1
DIGITAL DISPLAY DC30D VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 30 L NET WEIGHT 318 Kg
AUTONOMY 10 H GROSS WEIGHT 360 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 1360 x 650 x 980 mm
SOUND LEVEL 96 dBA LWA BOX DIMENSIONS 1410 x 700 x 1015 mm
ENGINE EV80 EAN 8435528104237
ENGINE POWER 16 Hp
DISPLACEMENT 794 CC (2 CYLINDERS)
STARTING SYSTEM Electric / ATS
www.itcpower.com 55
