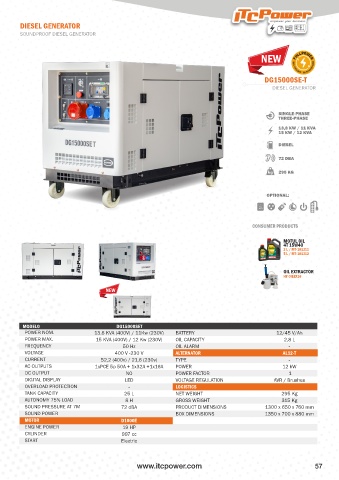

DIESEL GENERATOR
SOUNDPROOF DIESEL GENERATOR
NEW
DG15000SE-T
DIESEL GENERATOR
SINGLE-PHASE
THREE-PHASE
13,8 KW / 11 KVA
15 KW / 12 KVA
DIESEL
72 DBA
295 KG
OPTIONAL:
CONSUMER PRODUCTS
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
HY-OILEX16
NEW
MODELO DG15000SET
POWER NOM. 13.8 KVA (400V) / 11Kw (230V) BATTERY 12/45 V/Ah
POWER MAX. 15 KVA (400V) / 12 Kw (230V) OIL CAPACITY 2,8 L
FREQUENCY 50 Hz OIL ALARM -
VOLTAGE 400 V -230 V ALTERNATOR AL12-T
CURRENT 52,2 (400v) / 21,6 (230v) TYPE -
AC OUTPUTS 1xPCE 5p 50A + 1x32A +1x16A POWER 12 kW
DC OUTPUT NO POWER FACTOR 1
DIGITAL DISPLAY LED VOLTAGE REGULATION AVR / Brushes
OVERLOAD PROTECTION - LOGISTICS
TANK CAPACITY 25 L NET WEIGHT 295 Kg
AUTONOMY 75% LOAD 8 H GROSS WEIGHT 315 Kg
SOUND PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 1300 x 650 x 760 mm
SOUND POWER BOX DIMENSIONS 1350 x 700 x 880 mm
MOTOR D1000E
ENGINE POWER 19 HP
CYLINDER 997 cc
START Electric
