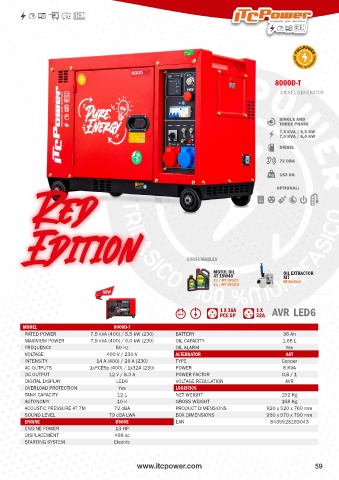

8000D-T

DIESEL GENERATOR

SINGLE AND
THREE PHASE
7,5 KVA / 5,5 KW
7,9 KVA / 6,0 KW

DIESEL

72 DBA

152 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL OIL EXTRACTOR
4T 15W40 KIT
2 L / MT-101311 HY-OILEX16
5 L / MT-101312
NEW

1 X 16A 1 X AVR LED6
PCE 5P 32A

MODEL 8000D-T
RATED POWER 7,5 kVA (400) / 5,5 kW (230) BATTERY 36 Ah
MAXIMUM POWER 7,9 kVA (400) / 6,0 kW (230) OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V / 230 V ALTERNATOR A6T
INTENSITY 14 A (400) / 28 A (230) TYPE Copper
AC OUTPUTS 1xPCE5p (400) / 1x32A (230) POWER 8 KVA
DC OUTPUT 12 V / 8.3 A POWER FACTOR 0,8 / 1
DIGITAL DISPLAY LED6 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 12 L NET WEIGHT 152 Kg
AUTONOMY 10 H GROSS WEIGHT 168 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 920 x 520 x 760 mm
SOUND LEVEL 79 dBA LWA BOX DIMENSIONS 950 x 570 x 790 mm
ENGINE D500E EAN 8435528163043
ENGINE POWER 13 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Electric
