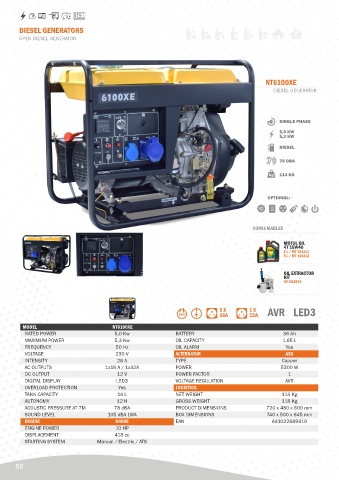

Page 62 - ITC 2024 EN

DIESEL GENERATORS
OPEN DIESEL GENERATOR

NT6100XE
DIESEL GENERATOR

SINGLE PHASE
5,0 KW
5,3 KW

DIESEL

78 DBA

114 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 1 X AVR LED3
16A 32A

MODEL NT6100XE
RATED POWER 5,0 Kw BATTERY 36 Ah
MAXIMUM POWER 5,3 Kw OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR A5S
INTENSITY 28 A TYPE Copper
AC OUTPUTS 1x16 A / 1x32A POWER 5300 W
DC OUTPUT 12 V POWER FACTOR 1
DIGITAL DISPLAY LED3 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 14 L NET WEIGHT 114 Kg
AUTONOMY 12 H GROSS WEIGHT 118 Kg
ACOUSTIC PRESSURE AT 7M 78 dBA PRODUCT DIMENSIONS 720 x 480 x 600 mm
SOUND LEVEL 105 dBA LWA BOX DIMENSIONS 740 x 500 x 645 mm
ENGINE D400E EAN 641022889619
ENGINE POWER 10 HP
DISPLACEMENT 418 cc
STARTING SYSTEM Manual / Electric / ATS
