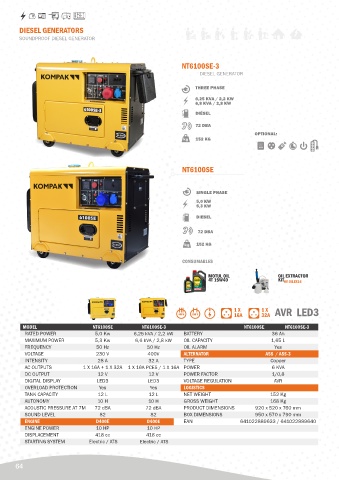

Page 64 - ITC 2024 EN

DIESEL GENERATORS
SOUNDPROOF DIESEL GENERATOR

NT6100SE-3

DIESEL GENERATOR

THREE PHASE
6,25 KVA / 2,2 KW
6,8 KVA / 2,8 KW
DIÉSEL

72 DBA
OPTIONAL:
152 KG

NT6100SE

SINGLE PHASE
5,0 KW
5,3 KW
DIESEL

72 DBA

152 KG

CONSUMABLES

MOTUL OIL OIL EXTRACTOR
4T 15W40 KIT HY-OILEX16

1 X
1 X 32A AVR LED3
16A
MODEL NT6100SE NT6100SE-3 NT6100SE NT6100SE-3
RATED POWER 5,0 Kw 6,25 kVA / 2,2 kW BATTERY 36 Ah
MAXIMUM POWER 5,3 Kw 6,6 kVA / 2,8 kW OIL CAPACITY 1,65 L
FREQUENCY 50 Hz 50 Hz OIL ALARM Yes
VOLTAGE 230 V 400V ALTERNATOR A5S / A5S-3
INTENSITY 28 A 32 A TYPE Copper
AC OUTPUTS 1 X 16A + 1 X 32A 1 X 16A PCE5 / 1 X 16A POWER 6 KVA
DC OUTPUT 12 V 12 V POWER FACTOR 1/0,8
DIGITAL DISPLAY LED3 LED3 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes Yes LOGISTICS
TANK CAPACITY 12 L 12 L NET WEIGHT 152 Kg
AUTONOMY 10 H 10 H GROSS WEIGHT 168 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA 72 dBA PRODUCT DIMENSIONS 920 x 520 x 760 mm
SOUND LEVEL 82 82 BOX DIMENSIONS 950 x 570 x 790 mm
ENGINE D400E D400E EAN 641022889633 / 641022889640
ENGINE POWER 10 HP 10 HP
DISPLACEMENT 418 cc 418 cc
STARTING SYSTEM Electric / ATS Electric / ATS

64
