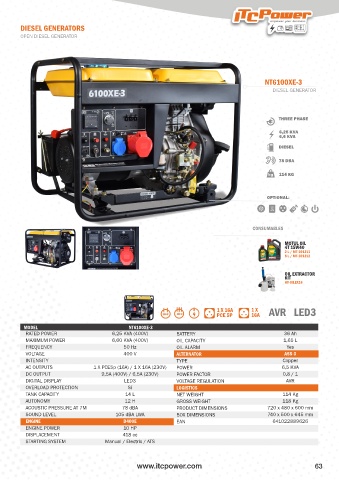

Page 63 - ITC 2024 EN

DIESEL GENERATORS
OPEN DIESEL GENERATOR

NT6100XE-3
DIESEL GENERATOR

THREE PHASE

6,25 KVA
6,6 KVA

DIESEL

78 DBA

114 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 16A 1 X AVR LED3
PCE 5P 16A

MODEL NT6100XE-3
RATED POWER 6,25 KVA (400V) BATTERY 36 Ah
MAXIMUM POWER 6,60 KVA (400V) OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V ALTERNATOR A5S-3
INTENSITY TYPE Copper
AC OUTPUTS 1 X PCE5p (16A) / 1 X 16A (230V) POWER 6,5 KVA
DC OUTPUT 9,5A (400V) / 6,5A (230V) POWER FACTOR 0.8 / 1
DIGITAL DISPLAY LED3 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Sí LOGISTICS
TANK CAPACITY 14 L NET WEIGHT 114 Kg
AUTONOMY 12 H GROSS WEIGHT 118 Kg
ACOUSTIC PRESSURE AT 7M 78 dBA PRODUCT DIMENSIONS 720 x 480 x 600 mm
SOUND LEVEL 105 dBA LWA BOX DIMENSIONS 740 x 500 x 645 mm
ENGINE D400E EAN 641022889626
ENGINE POWER 10 HP
DISPLACEMENT 418 cc
STARTING SYSTEM Manual / Electric / ATS

www.itcpower.com 63
