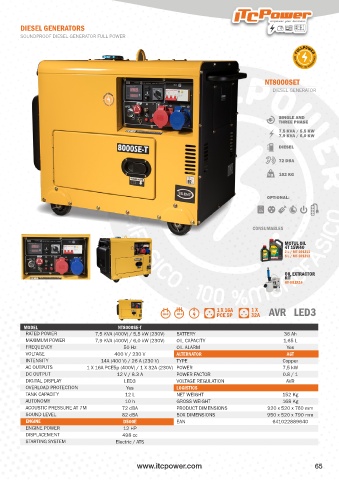

Page 65 - ITC 2024 EN
P. 65
DIESEL GENERATORS
SOUNDPROOF DIESEL GENERATOR FULL POWER
NT8000SET
DIESEL GENERATOR
SINGLE AND
THREE PHASE
7,5 KVA / 5,5 KW
7,9 KVA / 6,0 KW
DIESEL
72 DBA
152 KG
OPTIONAL:
CONSUMABLES
MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312
OIL EXTRACTOR
KIT
HY-OILEX16
1 X 16A 1 X AVR LED3
PCE 5P 32A
MODEL NT8000SE-T
RATED POWER 7,5 KVA (400V) / 5,5 kW (230V) BATTERY 36 Ah
MAXIMUM POWER 7,9 KVA (400V) / 6,0 kW (230V) OIL CAPACITY 1,65 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V / 230 V ALTERNATOR A6T
INTENSITY 14A (400 V) / 26 A (230 V) TYPE Copper
AC OUTPUTS 1 X 16A PCE5p (400V) / 1 X 32A (230V) POWER 7,5 kW
DC OUTPUT 12 V / 8.3 A POWER FACTOR 0.8 / 1
DIGITAL DISPLAY LED3 VOLTAGE REGULATION AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 12 L NET WEIGHT 152 Kg
AUTONOMY 10 h GROSS WEIGHT 168 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 920 x 520 x 760 mm
SOUND LEVEL 82 dBA BOX DIMENSIONS 950 x 520 x 790 mm
ENGINE D500E EAN 641022889640
ENGINE POWER 12 HP
DISPLACEMENT 498 cc
STARTING SYSTEM Electric / ATS
www.itcpower.com 65
