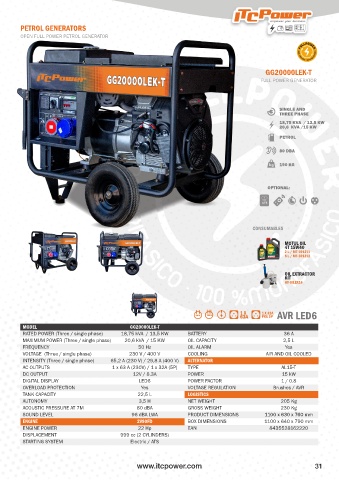

Page 31 - ITC 2024 EN

PETROL GENERATORS
OPEN FULL POWER PETROL GENERATOR

GG20000LEK-T
FULL POWER GENERATOR

SINGLE AND
THREE PHASE
18,75 KVA / 13,5 KW
20,6 KVA /15 KW
PETROL

80 DBA

190 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 32A LED6
PCE 5P
MODEL GG20000LEK-T
RATED POWER (Three / single phase) 18,75 kVA / 13,5 KW BATTERY 36 A
MAXIMUM POWER (Three / single phase) 20,6 kVA / 15 KW OIL CAPACITY 2,5 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE (Three / single phase) 230 V / 400 V COOLING AIR AND OIL COOLED
INTENSITY (Three / single phase) 65,2 A (230 V) / 29,8 A (400 V) ALTERNATOR
AC OUTPUTS 1 x 63 A (230V) / 1 x 32A (5P) TYPE AL15-T
DC OUTPUT 12V / 8.3A POWER 15 kW
DIGITAL DISPLAY LED6 POWER FACTOR 1 / 0.8
OVERLOAD PROTECTION Yes VOLTAGE REGULATION Brushes / AVR
TANK CAPACITY 22,5 L LOGISTICS
AUTONOMY 3,5 H NET WEIGHT 205 Kg
ACOUSTIC PRESSURE AT 7M 80 dBA GROSS WEIGHT 230 Kg
SOUND LEVEL 96 dBA LWA PRODUCT DIMENSIONS 1100 x 630 x 760 mm
ENGINE 2V90FD BOX DIMENSIONS 1100 x 640 x 790 mm
ENGINE POWER 22 Hp EAN 8435528162220
DISPLACEMENT 999 cc (2 CYLINDERS)
STARTING SYSTEM Electric / ATS

www.itcpower.com 31
