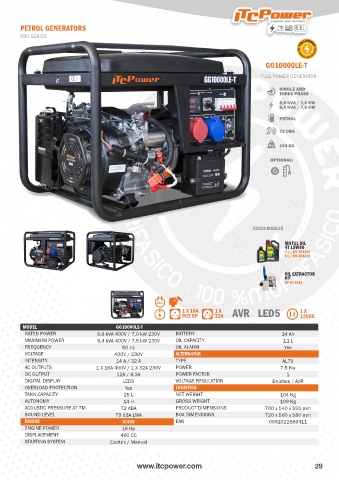

Page 29 - ITC 2024 EN

PETROL GENERATORS
PRO SERIES

GG10000LE-T

FULL POWER GENERATOR

SINGLE AND
THREE PHASE
8,8 KVA / 7,0 KW
9,4 KVA / 7,5 KW
PETROL

72 DBA

104 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 16A 1 X AVR LED5 1 X
PCE 5P 32A 12VDC

MODEL GG10000LE-T
RATED POWER 8,8 kVA 400V / 7,0 kW 230V BATTERY 14 Ah
MAXIMUM POWER 9,4 kVA 400V / 7,5 kW 230V OIL CAPACITY 1,1 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400V / 230V ALTERNATOR
INTENSITY 14 A / 32 A TYPE AL75
AC OUTPUTS 1 X 16A 400V / 1 X 32A 230V POWER 7,5 Kw
DC OUTPUT 12V / 8.3A POWER FACTOR 1
DIGITAL DISPLAY LED5 VOLTAGE REGULATION Brushes / AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 25 L NET WEIGHT 104 Kg
AUTONOMY 14 H GROSS WEIGHT 109 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 700 x 540 x 555 mm
SOUND LEVEL 79 dBA LWA BOX DIMENSIONS 720 x 560 x 580 mm
ENGINE IC460 EAN 0641022889411
ENGINE POWER 16 Hp
DISPLACEMENT 460 CC
STARTING SYSTEM Electric / Manual

www.itcpower.com 29
