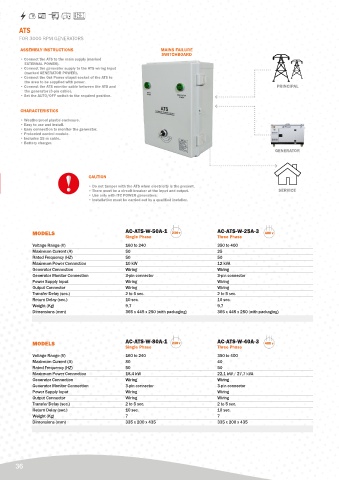

Page 36 - ITC 2024 EN

ATS
FOR 3000 RPM GENERATORS
ASSEMBLY INSTRUCTIONS MAINS FAILURE
SWITCHBOARD
• Connect the ATS to the main supply (marked
EXTERNAL POWER).
• Connect the generator supply to the ATS wiring input
(marked GENERATOR POWER).
• Connect the Out Power otuput socket of the ATS to
the area to be supplied with power.
• Connect the ATS monitor cable between the ATS and PRINCIPAL
the generator (3-pin cable).
• Set the AUTO/OFF switch to the required position.

CHARACTERISTICS
• Weatherproof plastic enclosure.
• Easy to use and install.
• Easy connection to monitor the generator.
• Protected control module.
• Includes 15 m cable.
• Battery charger.
GENERATOR

CAUTION
• Do not tamper with the ATS when electricity is the present.
• There must be a circuit breaker at the input and output. SERVICE
• Use only with ITC POWER generators.
• Installation must be carried out by a qualified installer.

MODELS AC-ATS-W-50A-1 AC-ATS-W-25A-3
Single Phase Three Phase
Voltage Range (V) 160 to 240 350 to 400
Maximum Current (A) 50 25
Rated Frequency (HZ) 50 50
Maximum Power Connection 10 kW 12 kVA
Generator Connection Wiring Wiring
Generator Monitor Connection 3-pin connector 3-pin connector
Power Supply Input Wiring Wiring
Output Connector Wiring Wiring
Transfer Delay (sec.) 2 to 5 sec. 2 to 5 sec.
Return Delay (sec.) 10 sec. 10 sec.
Weight (Kg) 9,7 9,7
Dimensions (mm) 365 x 445 x 250 (with packaging) 365 x 445 x 250 (with packaging)

MODELS AC-ATS-W-80A-1 AC-ATS-W-40A-3
Single Phase Three Phase
Voltage Range (V) 160 to 240 350 to 400
Maximum Current (A) 80 40
Rated Frequency (HZ) 50 50
Maximum Power Connection 18,4 kW 22,1 kW / 27,7 kVA
Generator Connection Wiring Wiring
Generator Monitor Connection 3-pin connector 3-pin connector
Power Supply Input Wiring Wiring
Output Connector Wiring Wiring
Transfer Delay (sec.) 2 to 5 sec. 2 to 5 sec.
Return Delay (sec.) 10 sec. 10 sec.
Weight (Kg) 7 7
Dimensions (mm) 335 x 200 x 435 335 x 200 x 435
