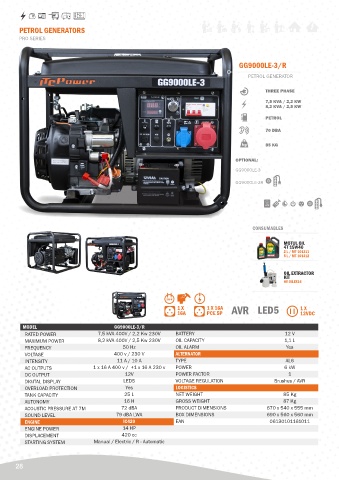

Page 28 - ITC 2024 EN

PETROL GENERATORS
PRO SERIES

GG9000LE-3/R

PETROL GENERATOR

THREE PHASE

7,5 KVA / 2,2 KW
8,2 KVA / 2,5 KW
PETROL

70 DBA

85 KG

OPTIONAL:

GG9000LE-3
GG9000LE-3R

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 1 X 16A AVR LED5 1 X
16A PCE 5P 12VDC

MODEL GG9000LE-3/R
RATED POWER 7,5 kVA 400V / 2,2 Kw 230V BATTERY 12 V
MAXIMUM POWER 8,2 kVA 400V / 2,5 Kw 230V OIL CAPACITY 1,1 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 v / 230 V ALTERNATOR
INTENSITY 11 A / 10 A TYPE AL6
AC OUTPUTS 1 x 16 A 400 v / +1 x 16 A 230 v POWER 6 kW
DC OUTPUT 12V POWER FACTOR 1
DIGITAL DISPLAY LED5 VOLTAGE REGULATION Brushes / AVR
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 25 L NET WEIGHT 85 Kg
AUTONOMY 16 H GROSS WEIGHT 87 Kg
ACOUSTIC PRESSURE AT 7M 72 dBA PRODUCT DIMENSIONS 670 x 540 x 555 mm
SOUND LEVEL 79 dBA LWA BOX DIMENSIONS 690 x 560 x 560 mm
ENGINE IC420 EAN 06130101161011
ENGINE POWER 14 HP
DISPLACEMENT 420 cc
STARTING SYSTEM Manual / Electric / R - Automatic

28
