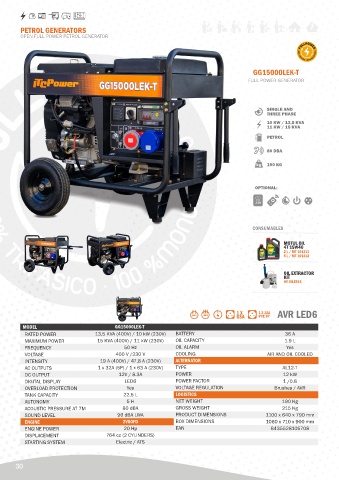

Page 30 - ITC 2024 EN

PETROL GENERATORS
OPEN FULL POWER PETROL GENERATOR

GG15000LEK-T
FULL POWER GENERATOR

SINGLE AND
THREE PHASE
10 KW / 13,5 KVA
11 KW / 15 KVA
PETROL

80 DBA

190 KG

OPTIONAL:

CONSUMABLES

MOTUL OIL
4T 15W40
2 L / MT-101311
5 L / MT-101312

OIL EXTRACTOR
KIT
HY-OILEX16

1 X 32A LED6
PCE 5P
MODEL GG15000LEK-T
RATED POWER 13,5 KVA (400V) / 10 kW (230V) BATTERY 36 A
MAXIMUM POWER 15 KVA (400V) / 11 kW (230V) OIL CAPACITY 1.9 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 400 V /230 V COOLING AIR AND OIL COOLED
INTENSITY 19 A (400V) / 47,8 A (230V) ALTERNATOR
AC OUTPUTS 1 x 32A (5P) / 1 x 63 A (230V) TYPE AL12-T
DC OUTPUT 12V / 8.3A POWER 12 kW
DIGITAL DISPLAY LED6 POWER FACTOR 1 /0.8
OVERLOAD PROTECTION Yes VOLTAGE REGULATION Brushes / AVR
TANK CAPACITY 22,5 L LOGISTICS
AUTONOMY 5 H NET WEIGHT 190 Kg
ACOUSTIC PRESSURE AT 7M 80 dBA GROSS WEIGHT 215 Kg
SOUND LEVEL 96 dBA LWA PRODUCT DIMENSIONS 1100 x 640 x 790 mm
ENGINE 2V80FD BOX DIMENSIONS 1060 x 710 x 900 mm
ENGINE POWER 20 Hp EAN 8435528105708
DISPLACEMENT 764 cc (2 CYLINDERS)
STARTING SYSTEM Electric / ATS

30
