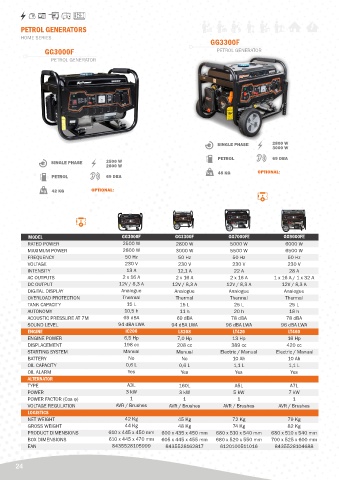

Page 24 - ITC 2024 EN

PETROL GENERATORS

HOME SERIES
GG3300F
GG3000F PETROL GENERATOR
PETROL GENERATOR

SINGLE PHASE 2800 W
3000 W
PETROL 69 DBA
SINGLE PHASE 2500 W
2800 W
45 KG OPTIONAL:
PETROL 69 DBA

42 KG OPTIONAL:

MODEL GG3000F GG3300F GG7000FE GG9000FE
RATED POWER 2500 W 2800 W 5000 W 6000 W
MAXIMUM POWER 2800 W 3000 W 5500 W 6500 W
FREQUENCY 50 Hz 50 Hz 50 Hz 50 Hz
VOLTAGE 230 V 230 V 230 V 230 V
INTENSITY 13 A 12,1 A 22 A 28 A
AC OUTPUTS 2 x 16 A 2 x 16 A 2 x 16 A 1 x 16 A / 1 x 32 A
DC OUTPUT 12V / 8,3 A 12V / 8,3 A 12V / 8,3 A 12V / 8,3 A
DIGITAL DISPLAY Analogue Analogue Analogue Analogue
OVERLOAD PROTECTION Thermal Thermal Thermal Thermal
TANK CAPACITY 15 L 15 L 25 L 25 L
AUTONOMY 10,5 h 11 h 20 h 18 h
ACOUSTIC PRESSURE AT 7M 69 dBA 69 dBA 78 dBA 78 dBA
SOUND LEVEL 94 dBA LWA 94 dBA LWA 96 dBA LWA 96 dBA LWA
ENGINE IC200 LS208 LT420 LT460
ENGINE POWER 6,5 Hp 7,0 Hp 13 Hp 16 Hp
DISPLACEMENT 198 cc 208 cc 389 cc 420 cc
STARTING SYSTEM Manual Manual Electric / Manual Electric / Manual
BATTERY No No 10 Ah 10 Ah
OIL CAPACITY 0,6 L 0,6 L 1,1 L 1,1 L
OIL ALARM Yes Yes Yes Yes
ALTERNATOR
TYPE A3L 160L A5L A7L
POWER 3 kW 3 kW 5 kW 7 kW
POWER FACTOR (Cos φ) 1 1 1 1
VOLTAGE REGULATION AVR / Brushes AVR / Brushes AVR / Brushes AVR / Brushes
LOGISTICS
NET WEIGHT 42 Kg 45 Kg 72 Kg 79 Kg
GROSS WEIGHT 44 Kg 48 Kg 74 Kg 82 Kg
PRODUCT DIMENSIONS 610 x 445 x 450 mm 600 x 435 x 450 mm 680 x 510 x 540 mm 680 x 510 x 540 mm
BOX DIMENSIONS 610 x 445 x 470 mm 605 x 445 x 455 mm 680 x 520 x 550 mm 700 x 525 x 600 mm
EAN 8435528105999 8435528162817 6120100511016 8435528104688

24
