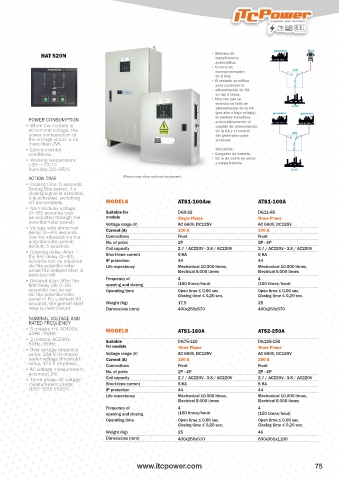

Page 75 - ITC 2024 EN

HAT 520N • Sistema de
transferencia
automática.
• Control de
microprocesador
de 8 bits.
• El módulo se utiliza
para controlar la
alimentación de CA
en las 3 fases.
• Una vez que se
detecta un fallo de
alimentación de la CA
(por alto o bajo voltaje),
POWER CONSUMPTION el módulo transfiere
automáticamente el
• When the module is cambio de alimentación
at nominal voltage, the de la CA y el control
power consumption of del generador para
the voltage circuit is no arrancar.
more than 2VA.
• Environmental INCLUIDO:
conditions. • Cargador de batería.
• Working temperature: • 15 m de cable de señal
(-30~+70)°C y carga batería.
humidity:(20~95)%
ACTION TIME (Photos may show optional equipment)
• Closing time: 5 seconds.
During this period, if a
closing signal is detected,
it is activated, switching
off immediately. MODELS ATS1-100Am ATS1-100A
• Normal delay voltage:
(0~60) seconds (can Suitable for DG9-22 DG11-65
be adjusted through the models Single Phase Three Phase
potentiometer panel). Voltage range (V) AC 660V, DC125V AC 660V, DC125V
• Voltage with abnormal
delay: (0~60) seconds Current (A) 100 A 100 A
(can be adjusted via the Connections Front Front
potentiometer panel) No. of poles 2P 2P - 4P
default: 5 seconds.
• Opening delay: After Coil capacity 2.7 / AC220V - 3.8 / AC220V 2.7 / AC220V - 3.8 / AC220V
the first delay (0~60) Short-time current 5 KA 5 KA
seconds can be adjusted IP protection 44 44
via the potentiometer Life expectancy Mechanical 10.000 times, Mechanical 10.000 times,
panel the delayed start is Electrical 5.000 times Electrical 5.000 times
switched off.
• Delayed stop: After the Frequency of 4 4
first delay (de 0~90 opening and closing (150 times/hour) (150 times/hour)
seconds) can be set Operating time Open time ≤ 0,06 sec. Open time ≤ 0,06 sec.
via the potentiometer Closing time ≤ 0,20 sec. Closing time ≤ 0,20 sec.
panel or Pc, y default 90
seconds, the genset start Weight (Kg) 17,5 25
relay is deactivated. Dimensions (mm) 400x260x570 400x260x570
NOMINAL VOLTAGE AND
RATED FREQUENCY
• 3 phases +N, AC400V, MODELS ATS1-160A ATS2-250A
50Hz /60Hz;
• 2 phases, AC230V,
50Hz /60Hz; Suitable DG75-110 DG125-150
for models
• Over voltage threshold Three Phase Three Phase
value: 264 V (N-phase) Voltage range (V) AC 660V, DC125V AC 660V, DC125V
under voltage threshold Current (A) 160 A 250 A
value, 172 V (N-phase). Connections Front Front
• AC voltage measurement
accuracy: 2%. No. of poles 2P - 4P 2P - 4P
• Three phase AC voltage Coil capacity 2.7 / AC220V - 3.8 / AC220V 2.7 / AC220V - 3.8 / AC220V
measurement range: Short-time current 5 KA 5 KA
(160~300) V±20%. IP protection 44 44
Life expectancy Mechanical 10.000 times, Mechanical 10.000 times,
Electrical 5.000 times Electrical 5.000 times
Frequency of 4 4
opening and closing (150 times/hour) (150 times/hour)
Operating time Open time ≤ 0,06 sec. Open time ≤ 0,06 sec.
Closing time ≤ 0,20 sec. Closing time ≤ 0,20 sec.
Weight (Kg) 25 46
Dimensions (mm) 400x260x570 600x355x1100

www.itcpower.com 75
