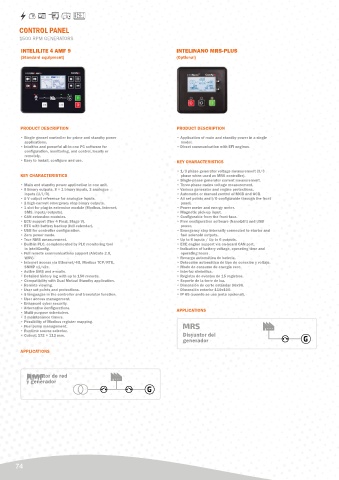

Page 74 - ITC 2024 EN

CONTROL PANEL
1500 RPM GENERATORS
INTELILITE 4 AMF 9 INTELINANO MRS-PLUS
(Standard equipment) (Optional)

PRODUCT DESCRIPTION PRODUCT DESCRIPTION
• Single genset controller for prime and standby power • Application of main and standby power in a single
applications. model.
• Intuitive and powerful all-in-one PC software for • Direct communication with EFI engines.
configuration, monitoring, and control, locally or
remotely.
• Easy to install, configure and use. KEY CHARACTERISTICS
• 1/3 phase generator voltage measurement (3/3
KEY CHARACTERISTICS phase when used as MRS controller).
• Single-phase generator current measurement.
• Main and standby power application in one unit. • Three-phase mains voltage measurement.
• 8 binary outputs, 8 + 1 binary inputs, 3 analogue • Various generator and engine protections.
inputs (U/I/R). • Automatic or manual control of MCB and GCB.
• 5 V output reference for analogue inputs. • All set points and I/O configurable through the front
• 2 high-current emergency stop binary outputs. panel.
• 1 slot for plug-in extension module (Modbus, Internet, • Power meter and energy meter.
SMS, inputs/outputs). • Magnetic pick-up input.
• CAN extension modules. • Configurable from the front face.
• ECU support (Tier 4 Final, Stage V). • Free configuration software (NanoEdit) and USB
• RTC with battery backup (full calendar). power.
• USB for controller configuration. • Emergency stop internally connected to starter and
• Zero power mode. fuel solenoid outputs.
• True RMS measurement. • Up to 6 inputs / Up to 6 outputs.
• Built-in PLC, complemented by PLC monitoring tool • ECE engine support via on-board CAN port.
in InteliConfig. • Indication of battery voltage, operating time and
• Full remote communications support (AirGate 2.0, operating hours .
WSV). • Recarga automática de batería.
• Internet access via Ethernet/4G, Modbus TCP/RTU, • Detección automática de tipo de conexión y voltaje.
SNMP v1/v2c. • Modo de consumo de energía cero.
• Active SMS and e-mails. • Interfaz simbólica.
• Detailed history log with up to 150 records. • Registro de eventos de 15 registros.
• Compatibility with Dual Mutual Standby application. • Soporte de la torre de luz.
• Remote viewing. • Dimensión de corte estándar 96x96.
• User set points and protections. • Dimensión exterior 110x100.
• 5 languages in the controller and translator function. • IP 65 (cuando se usa junta opcional).
• User access management.
• Enhanced cyber security.
• Alternative configurations. APPLICATIONS
• Multi-purpose schedulers.
• 3 maintenance timers.
• Possibility of Modbus register mapping.
• Fuel pump management. MRS
• Runtime source selector.
• Cutout: 172 × 112 mm. Disyuntor del
generador
APPLICATIONS

AMF
Disyuntor de red
y generador

74
