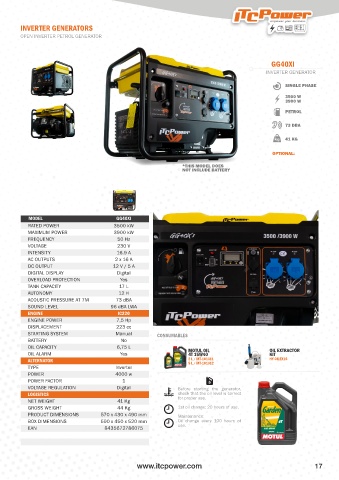

Page 17 - ITC 2024 EN

INVERTER GENERATORS
OPEN INVERTER PETROL GENERATOR

GG40XI
INVERTER GENERATOR

SINGLE PHASE
3500 W
3900 W
PETROL

73 DBA

41 KG

OPTIONAL:

*THIS MODEL DOES
NOT INCLUDE BATTERY

MODEL GG40XI
RATED POWER 3500 kW
MAXIMUM POWER 3900 kW
FREQUENCY 50 Hz
VOLTAGE 230 V
INTENSITY 16.9 A
AC OUTPUTS 2 x 16 A
DC OUTPUT 12 V / 5 A
DIGITAL DISPLAY Digital
OVERLOAD PROTECTION Yes
TANK CAPACITY 17 L
AUTONOMY 12 H
ACOUSTIC PRESSURE AT 7M 73 dBA
SOUND LEVEL 96 dBA LWA
ENGINE IC220
ENGINE POWER 7,5 Hp
DISPLACEMENT 223 cc
STARTING SYSTEM Manual CONSUMABLES
BATTERY No
OIL CAPACITY 6,75 L MOTUL OIL OIL EXTRACTOR
OIL ALARM Yes 4T 15W40 KIT
ALTERNATOR 2 L / MT-101311 HY-OILEX16
5 L / MT-101312
TYPE Inverter
POWER 4000 w
POWER FACTOR 1
VOLTAGE REGULATION Digital Before starting the generator,
LOGISTICS check that the oil level is correct
NET WEIGHT 41 Kg for proper use.
GROSS WEIGHT 44 Kg 1st oil change: 20 hours of use.
PRODUCT DIMENSIONS 570 x 430 x 490 mm Maintenance:
BOX DIMENSIONS 590 x 450 x 520 mm Oil change every 100 hours of
EAN 8435672786075 use.

www.itcpower.com 17
