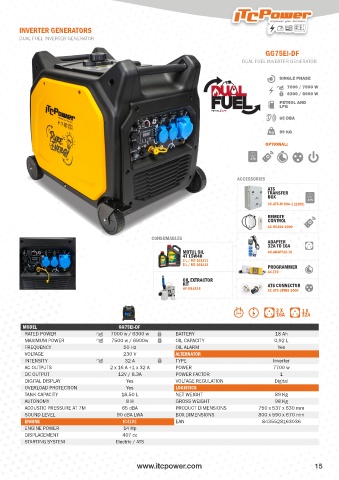

Page 15 - ITC 2024 EN
P. 15
INVERTER GENERATORS
DUAL FUEL INVERTER GENERATOR
GG75EI-DF
DUAL FUEL INVERTER GENERATOR
SINGLE PHASE
7000 / 7500 W
6300 / 6900 W
PETROL AND
LPG
PETROL LPG
65 DBA
89 KG
OPTIONAL:
ACCESSORIES
ATS
TRANSFER
BOX
AC-ATS-W-50A-1 (230V)
REMOTE
CONTROL
AC-RC300-3000
CONSUMABLES
ADAPTER
32A TO 16A
MOTUL OIL AC-ADAPT32-16
4T 15W40
2 L / MT-101311
5 L / MT-101312
PROGRAMMER
AC-T20
OIL EXTRACTOR
KIT ATS CONNECTOR
HY-OILEX16 AC-ATS-3PINS-3000
2 X 1 X
16A 32A
MODEL GG75EI-DF
RATED POWER 7000 w / 6300 w BATTERY 18 Ah
MAXIMUM POWER 7500 w / 6900w OIL CAPACITY 0,92 L
FREQUENCY 50 Hz OIL ALARM Yes
VOLTAGE 230 V ALTERNATOR
INTENSITY 32 A TYPE Inverter
AC OUTPUTS 2 x 16 A +1 x 32 A POWER 7700 w
DC OUTPUT 12V / 8.3A POWER FACTOR 1
DIGITAL DISPLAY Yes VOLTAGE REGULATION Digital
OVERLOAD PROTECTION Yes LOGISTICS
TANK CAPACITY 18,50 L NET WEIGHT 89 Kg
AUTONOMY 8 H GROSS WEIGHT 98 Kg
ACOUSTIC PRESSURE AT 7M 65 dBA PRODUCT DIMENSIONS 750 x 537 x 630 mm
SOUND LEVEL 90 dBA LWA BOX DIMENSIONS 800 x 590 x 670 mm
ENGINE IC410E EAN 8435528163036
ENGINE POWER 14 Hp
DISPLACEMENT 407 cc
STARTING SYSTEM Electric / ATS
www.itcpower.com 15
